This 5.9 Cummins high capacity oil pan is a multi-application oil pan for Truck/Marine/Industrial/Open Chassis that require a larger capacity than the stock 5.9 oil pan. This oil pan is 7" deep, 10" wide at the center, and 30-1/4" long and has a oil capacity of 20qts. This oil pan features a symmetrical bolt pattern which allows for front and rear pickup mounting. It includes double trap door baffles and slosh tray for superior oil control. 1/2" NPT turbo drain backs are on both sides of the oil pan as well as 1/2" NPT drain bungs at all four corners. The oil pan also includes a 1/4" NPT provision for a Canton dipstick. The finish of the pan is black powdercoat and built from 14 gauge steel for long lasting durability. Pickups required for this oil pan are 18-945 for front sump applications and 18-946 for rear sump applications.
The Pan Features
*7" Deep Flat bottom pan, 10" wide at center x 30-1/4" Long
*Symmetrical bolt pattern allows for front or rear oil pickup mounting
*Double trap door baffles and slosh tray for oil control
*1/2" NPT turbo drain back ports on both sides of the oil pan
*1/2" NPT Drain bungs on all four corners of the oil pan
*Canton Dipstick Provision
*14 Gauge Tig Welded Steel
*Black Powder Coat Finish

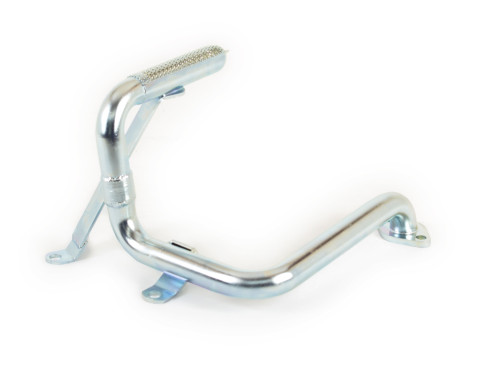

*Use 18-945 for front scavenge pickup tube
*Use 18-946 for rear scavenge pickup tube
18-945 5.9L Cummins Diesel Oil Pan
Best Results Installing an Oil Pan (PDF)
Be the first to review this product.
- Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 1 year of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- 20 Quart System Capacity
- Application Type:
- Sump Style:
- 14 Gauge Steel
- Engine Type:
- Cummins 5.9L
