Canton Racing Products

15-286A Aluminum Dart LS Next Front Sump Road Race Pan

$1,332.00
Current stock: 0
Description

Description

Our LS NEXT front sump road race oil pan is designed to take the changes that Dart has made to the LS block and completely maximize their effectiveness. Our pan features billet end caps that offer a precise fit to the unique pan rail of the Dart LS NEXT block. Our Pro-style oil recovery pouch is designed to maximize the horsepower that Dart freed up in the bottom end. Our diamond shape trap door baffle along with our anti-slosh baffle allow for maximum oil control in high performance driving situations. Will not fit on LS Next 2 blocks.

NOTES: Stock LS starter required. Meziere starter will require some modification to oil pan.

The Pan Features
* 6.5 qt System Capacity
* Pro Style Oil Recovery Pouch
* Machined Billet Front & Rear Seals
* Removable Windage Slosh Baffle
* Diamond Shape Road Race Trap Door Baffle System
* Magnetic Drain Plug
* Provision for pan mounted dipstick

Recommended Accessories

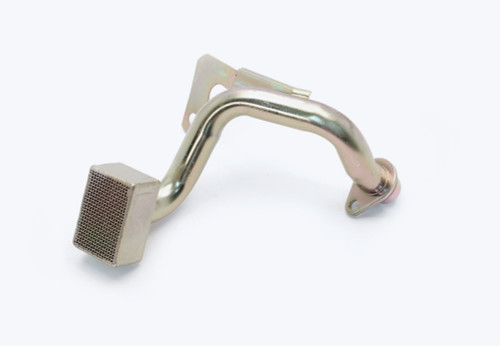

15-287 - Dart LS NEXT front sump pickup for 15-286A pan
21-870 - LS Flywheel Cover for T56 Bellhousing
22-304 - LS NEXT Oil Pan Stud Kit
22-405 - Plug for 20mm bung if low oil warning sender is not used
22-620 - Billet Aluminum remote spin-on filter mount 13/16"-16 Thread

Product Tech
Best Results Installing an Oil Pan (PDF)
15-286A Sealing Instruction Guide (PDF)

Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

Warranty:
Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 1 year of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
SKU:
15-286A
Condition:
New
Availability:
2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
Capacity:
6.5 Quart System Capacity
Finish:
Raw Aluminum
Material:
.100 Aluminum
Application Type:
Road Racing
Sump Style:
L-Sump
Engine Type:
Dart LS Next
