Canton Racing Products

11-187 Small Block Chevy Open Chassis Pro Style Pan With Left Or Rear Starters

$765.60 $708.18
You save: $57.42
Current stock: 0
Description

Description

This open chassis "L" style steel wet sump is for ’85 and earlier Small Block Chevys with left or rear mounted starters. This oil pan is designed for chassis without x-members under the engine (asphalt and dirt modifieds, sprint cars, and some late models). It has an 11-1/2" wide, 16" long, 7" deep “L” sump with a 9 quart system capacity. Requires one of our pickups. Also an avilable option for this pan is #20-914 Pro Louvered Windage Tray, designed to replace the standard screen tray in this pan.

NOTES: Requires offset aftermarket starter and a 153 or 168 tooth flywheel. 20-914 Pro Louvered Windage Tray Upgrade Required for Dirt Racing.

Oil Pan Featuresquestion-mark.png
* 9 qt System Capacity
* Six Trap Door Baffles & Directional Oil Runners
* Pro Style Oil Recovery Pouch
* Bolt in Slosh Baffle
* Built in Screen Windage Tray
* Bolt in Slosh Baffle
* 1/2” NPT Temperature Bung
* Provison for our Pan Mounted Dipstick
* Magnetic Drain Plug

Recommended Accessories
20-040 - Pickup for Small Block Standard Volume Pumps M55 & M55A
20-042 - Pickup for Small Block Standard Volume Pumps M155 w/ 3/4" Tube
20-070 - Pickup for Small Block High Volume Pumps M55HV

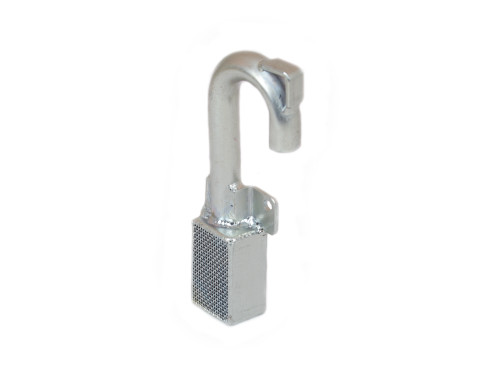

20-072 - Pickup for Small Block High Volume Pumps w/ 3/4" Tube M155HV
20-077 - Press In Pickup for Melling 10552 & 10555 Pumps
20-100 - Pickup for Big Block (5-bolt) Pumps M77 & M77HV
20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting
20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
22-300 - SBC Oil Pan Stud Kit
88-100 - 1 Piece SBC Pre-85' Oil Pan Gasket
88-102 - 4 Piece SBC Pre-85' Oil Pan Gasket

Product Tech
Best Results Installing an Oil Pan (PDF)
Power Pan Installation Guide (PDF)

Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

Warranty:
Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 1 year of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
SKU:
11-187
Condition:
New
Availability:
2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
Capacity:
9 Quart System Capacity
Finish:
Clear Zinc Chromate (Silver)
Material:
16 Gauge Steel
Application Type:
Circle Track Racing
Sump Style:
L-Sump
Engine Type:
Small Block Chevy
Stroke:
3.875
