15-276BLK GM LS1-LS6 5-5/8" Deep Front Sump Road Race and Drift Pan Black Powdercoat

$460.80
Current stock: 0 Out of stock
Sold Out
Description

Description

Canton’s new 15-276 front sump road race/drift car oil pan is designed for GM LS1/LS6 powered cars that require a shallow front sump oil pan. This pan is designed to use the GM pickup part number #12572654 from the 04-06 GTO. It’s diamond shaped baffle with 4 trap doors and removable windage/anti-slosh baffle provide the best oil control under demanding street and track conditions. With provisions for a pan mounted dipstick and 20 mm oil temperature sensor along with a 6.5 quart system oil capacity. Will not fit on LS Next 2 blocks.

Note: GM pickup part #12572654 required.

The Pan Features
* 6.5 qt System Capacity
* 4.25" Stroke Clearance
* Diamond Shape Trap Door Baffle
* Bolt in Slosh Baffle
* 20 mm bung for low oil warning sensor (22-405 required if not used)
* Provision for our 1/4 NPT pan mounted dipstick
* Magnetic Drain Plug
* Black Powdercoated

Recommended Accessories
21-870 - LS flywheel cover
22-302 - GM LS Oil Pan Stud Kit
22-630 - LS1 Remote Filter Adapter
22-632 - LS1 90 Degree Remote Filter Adapter
22-631 - LS1 Pan Mounted Spin-on Filter Mount
22-620 - Billet Aluminum Spin-on Filter Adapter
22-405 - 20mm Plug(needed if not using low oil sender

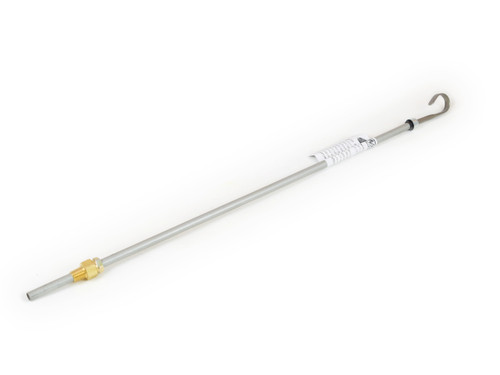

20-850 - Universal Dipstick Kit 1/4" N.P.T. Fitting

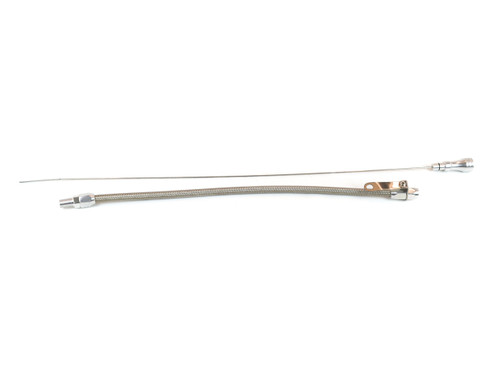

20-854 - Universal Steel Braided Dipstick Kit 1/4" N.P.T. Fitting
21-870 - Aluminum Flywheel Cover
20-902 - Front Sump LS Screen Windage Tray
20-902P - Front Sump LS Louvered Windage Tray

Product Tech
Best Results Installing an Oil Pan (PDF)



Reviews

Reviews (0)

Be the first to review this product.
Additional Info

Additional Info

Warranty:
Canton Racing Products, Inc. warrants that when our products are properly installed in their correct application they will be free from defect. Any product returned for warranty must be returned to Canton Racing Products, Inc. within 90 days of purchase. All returns must include the original sales slip or proof of purchase, detailed information regarding the problem, your name, address and phone number.
SKU:
15-276BLK
Condition:
New
Availability:
2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
Capacity:
6.5 Quart System Capacity
Finish:
Gold Iridite Plated
Material:
16 Gauge Steel
Application Type:
Road Racing
Application Type:
Drift
Sump Style:
T-Sump
Engine Type:
GM LS
